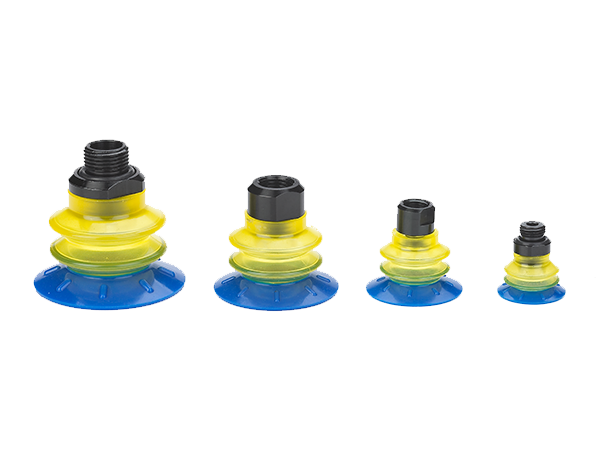

Features
◇ 2.5 bellows vacuum pad
◇ Good elasticity and high tensile strength.
◇ Good wear resistance and oil resistance.
◇ PU material. Long life time. Its life time is 2-4 times longer than other material.
Applications
◇ Suitable for objects with uneven net-patterned surface.
◇ Suitable for plastic industry.
| How to order | |||
| SGP 25 U -G1F ① ② ③ ④ | |||
| ① Series | ② Diameter | ③ Material& Hardness | ④ Connection thread |
| SGP | 25 -φ25mm 35 -φ35mm 45 -φ45mm 55 -φ55mm | U - PU UD - PU | Nil-Suction cup alone, no connection thread G1F - G1/8Female thread G1M - G1/8Male thread G2F - G1/4Female thread G2M - G1/4 Male thread |
| Selection | ||||||
| Model/ Connection thread | G1F | G1M | G2F | G2M | G3F | G3M |
| SGP25 - 45 | ● | ● | - | - | - | - |
| SGP55 | - | - | ● | ● | ● | ● |
◇Note: "●"- standard, in stock. "-"- unavailable.
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm³) | Min. Curve radius of workpiece (mm) | Recommended tube diameter(mm) |
| SGP25 | 22.0 | 3.0 | 31.0 | 6.0 |
| SGP35 | 43.0 | 6.0 | 42.0 | 6.0 |
| SGP45 | 71.0 | 13.0 | 54.0 | 6.0 |
| SGP55 | 106.0 | 23.0 | 64.0 | 10.0 |
◇Note: Testing vacuum level -60kPa. Workpiece with smooth and clean surface. The data of pull-out force as above are
figured out without considering safety factor. The data may be different according to different workpiece surfaces.

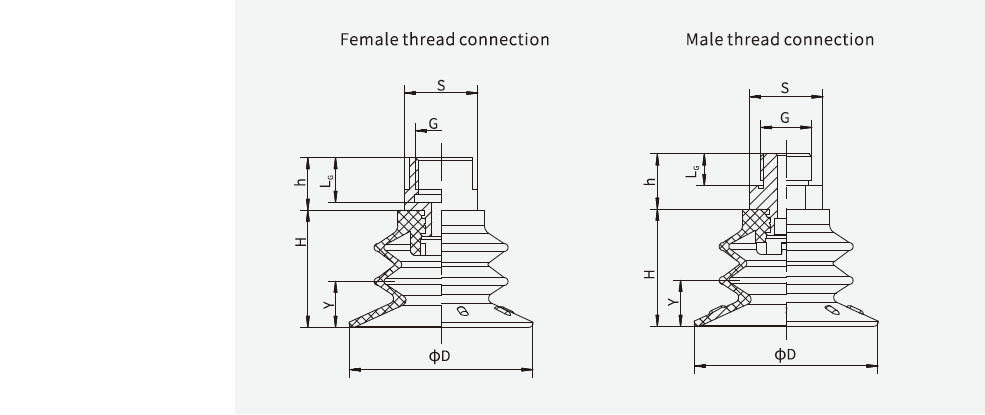

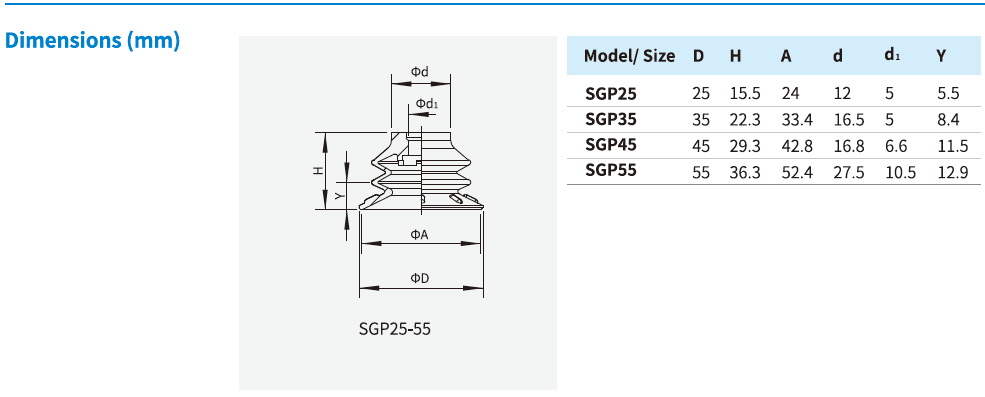

| Model/Dimension | D | H | G | h | LG | Y | S |
| SGP25-G1F | 25.0 | 15.5 | G1/8 | 8.0 | 7.0 | 5.5 | 13.0 |
| SGP25-G1M | 25.0 | 15.5 | G1/8 | 7.8 | 6.0 | 5.5 | 13.0 |
| SGP35-G1F | 35.0 | 22.3 | G1/8 | 8.0 | 7.0 | 8.5 | 13.0 |
| SGP35-G1M | 35.0 | 22.3 | G1/8 | 7.8 | 6.0 | 8.5 | 13.0 |
| SGP45-G1F | 45.0 | 29.3 | G1/8 | 10.0 | 7.0 | 11.5 | 17.0 |
| SGP45-G1M | 45.0 | 29.3 | G1/8 | 12.0 | 6.0 | 11.5 | 17.0 |
| SGP55-G2F | 55.0 | 36.3 | G1/4 | 13.0 | 10.0 | 13.0 | 24.0 |
| SGP55-G2M | 55.0 | 36.3 | G1/4 | 17.0 | 9.0 | 13.0 | 24.0 |
| SGP55-G3F | 55.0 | 36.3 | G3/8 | 13.0 | 10.0 | 13.0 | 24.0 |
| SGP55-G3M | 55.0 | 36.3 | G3/8 | 18.0 | 10.0 | 13.0 | 24.0 |
| Mounting parts | |||||||
| Spare parts | Model | Vacuum pad | |||||
| F- Female thread | M-Male thread | ||||||
| Fitting for suction cup | PJS-G1F-SF1-EW | PJS-G1M-SF1-EW | SGP25、35 | ||||
| PJS-G1F-SF2-EW | PJS-G1M-SF2-EW | SGP45 | |||||
| PJS-G2F-SF3-EW | PJS-G2M-SF3-EW | SGP55 | |||||
| PJS-G3F-SF3-EW | PJS-G3M-SF3-EW | ||||||
